R-CAM 1000XS Downhole Camera

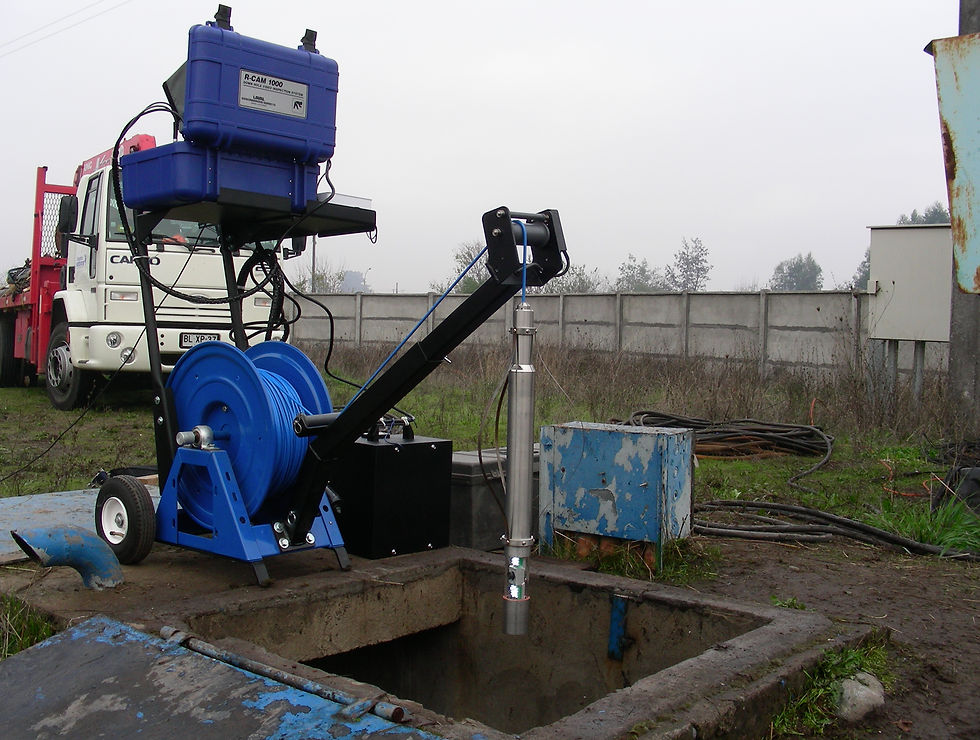

The R-Cam XS is a portable dual-view, borehole camera system with automated control for either downhole or side-view video profile. Side-view lens includes 360 degree rotation to the right and left with no external moving parts. This camera has effective survey capabilities for 3-inch to 12-inch (7.62-cm to 30.5-cm) well diameters. The R-Cam well camera system comes equipped with a protective case provided for storage, lighting system, camera, control unit, cable, video monitor, centering bands, DVR recorder, power supply and transport cart for easy maneuvering.



Camera Technical Specifications

Diameter: 2 inches (5.1 cm) O.D.
Overall Length: 20 inches (50.8 cm)
Housing: Stainless steel
Cable: 1,000 feet (304.8 m) or 1,300 feet (396.2 m) Kevlar-reinforced, small diameter coaxial cable. Single conductor electronic technology.
Lens: BK-7 glass
Power Supply: Portable 12VDC battery pack and charger. Rechargeable by local current (please specify at time of order).
Total Camera Weight: 18 lbs (8.2 kg)
Pressure Rating: Pressure tested and waterproof to 500 p.s.i.
Scanning System: Camera Modules greater than or equal to 540 TVL for NTSC and PAL
Operating Temperature: 32° to 122° F (0° to 50° C)
Recorder: Records onto a Battery Operated DVR (please specify NTSC or PAL at time of order)
LED Lighting: High intensity, long life, shock proof LED lighting, side view and forward view
Depth Counter: On-screen depth display measured in feet and tenths, or meters.
Monitor: 7-inch LCD color monitor with sunscreen viewing hood
Winch, Reel, Motor, and Cart: 12VDC electric powered, variable speed reel for raising and lowering camera in well. All parts are mounted on a small, two-wheeled cart with extendable 36-inch boom.
